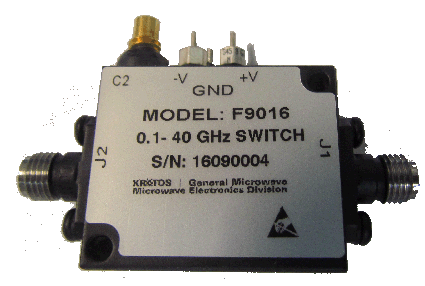

0.1 to 40 GHz SPST RF SWITCH MODEL F9016

0.1 to 40 GHz SPST RF SWITCH MODEL F9016

0.1 to 40 GHz SPST RF SWITCH MODEL F9016

Application Notes for RF Switches


General Microwave introduces the Model F9016 ultrabroadband, Reflective SPST Switch operating over a frequency range of 100 MHz to 40 GHz.
Applications include ultra-wide band systems such as, Test Equipment, Receiver Systems and EW systems.








  • 0.1 to 40 GHz FREQUENCY RANGE
  • LOW VSWR and INSERTION LOSS



                                                             F9016

                             PERFORMANCE CHARACTERISTICS

  MODEL NO.   CHARACTERISTIC FREQUENCY (GHz)
0.1-4 4-18 18-26.5 26.5-40
  F9016   Min. Isolation (dB)
  Max. Insertion Loss (dB)
  Max. VSWR (ON)		 65
2.3
2.0		 65
2.9
2.3		 60
3.5
2.5		 50
5.0
2.5

SWITCHING CHARACTERISTIC
   Switching Time ………………..250 ns max.

 POWER HANDLING CAPABILITY
   Without Performance
      Degradation …………………200 mW cw or pulse

 POWER SUPPLY REQUIREMENTS
      +5V ……………………………±2%, 60 mA max.
      -15V …………………………..±5%, 50 mA max.

 CONTROL CHARACTERISTICS
   Control Input Impedance  ……………………….
 		TTL, advanced Schottky, one unit load. (A unit load is 0.6 mA sink current and 20 μA source current.)
   Control Logic   ………………………………………
 Logic “0” (-0.3 to +0.8V) for port ON and logic “1” (+2.0 to +5.0V) for port OFF.

 OPTION (G09) ENVIRONMENTAL RATINGS

Operating Temperature Range
 Operating Temperature Range -54°C to +95°C
Non-Operating Temperature Range.. -65°C to +125°C
Humidity…………………………………….. MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
Shock…………………………………………. MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)
Vibration……………………………………… MIL-STD-202F, Method 204D, Cond. B (.06″ double
amplitude or 15G, whichever is less)
Altitude………………………………………… MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)
Temp. Cycling……………………………….. MIL-STD-202F, Method 107D, Cond. A, 5 cycles


  AVAILABLE OPTIONS
Option No. Description
 G09  Guaranteed to meet Environmental Ratings
 G12  RoHS & Reach Compliant
G18  REACH Compliant


  DIMENTIONS AND WEIGHTS

Weight 1.06 oz. (30 gr.) approx.

Dimensions in  mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005

The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
