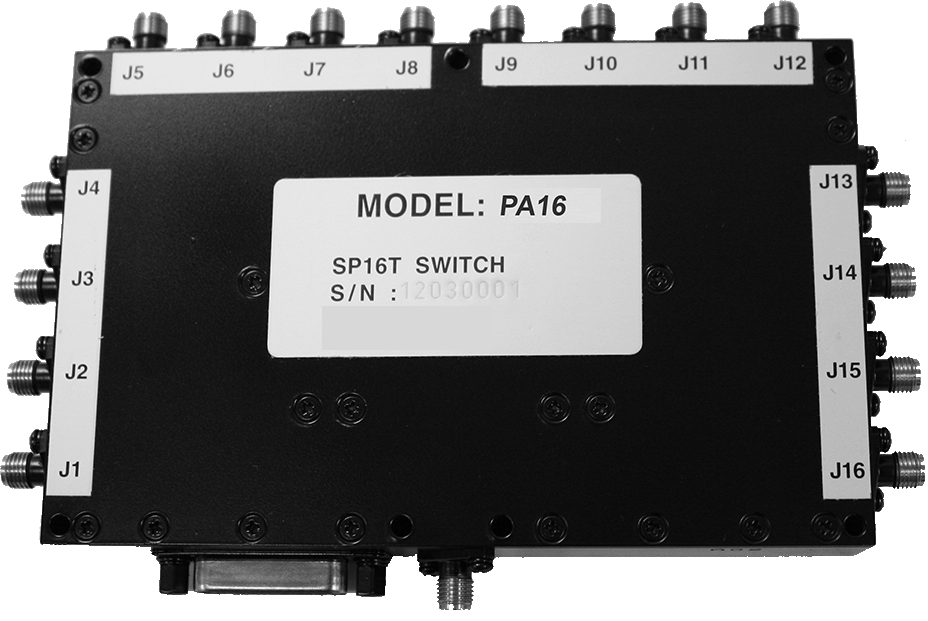

PA16 Series SP16T Switch

The Series PA16 Non-Reflective SP16T Switches have been designed for distribution of wide-band RF/Microwave signals. Applications include EW Simulators and Test Systems. All output ports are Phase and Amplitude matched to further minimize Simulator calibration and enhance the fidelity of Test Systems.

PERFORMANCE SPECIFICATIONS

MODEL NUMBER

PA1606

PA1618

Min. Frequency Range (GHz)
Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR one port ON
Max. VSWR OFF

0.5 to 6.0
65
6.0
2.0:1
2.0:1

1.0 to 18
60
6.5
2.2:1

2.2:1

Frequency range: 0.5 to 18 GHz
Phase matched
Amplitude matched
Non-reflective

PA16 Series SP16T Switch

Amplitude Matching (between any two output ports)…….	1.5 dB, max.
Phase Matching (between any two output ports)…………..	30°, max.
Switching Time
ON time ………………………………………………………………..	500 ns max.
OFF time ……………………………………………………………….	500 ns max.
Power Supply Requirements………………………………………	+5V ±5%, 450 mA max -12V ±5%, 135 mA max
Control Characteristics
Control Logic…………………………………………………………	4 Bit TTL Decoded Input
Operating Temperature.……………………………………………	-20°C to +70°C
Storage Temperature……………………………………………….	-20°C to +70°C
Power Handling Capability
Without Performance Degradation……………………………	Input to any “OFF” port: 100 mW cw or peak Input to any “ON” port: 1W cw or peak Input to common port: 1W cw or peak
Survival Power
Input to any “OFF” port…………………………………………..	1W average, 10W peak (1 µsec max. pulse width)
Input to any “ON” port……………………………………………	1W average, 75W peak (1 µsec max. pulse width)
Input to Common port…………………………………………..	1W average, 75W peak (1 µsec max. pulse width)

AVAILABLE OPTIONS

Option No.

Description

G12

RoHS Compliant

G18

REACH Compliant

DIMENSIONS AND WEIGHTS

Dimensions and weight for PA16 Series SP16T Switch

Weight: 17oz (480 gr) approx.
Dimensions in mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005
