RF SPDT Switch, Model 2677

Application Notes for RF Switches

Model 2677 is a wide frequency range, Low Cost, high-performance SPDT switch. It operates over the full instantaneous bandwidth of 0.1 to 20 GHz .

The proper currents required to switch the ports ON or OFF are provided by the user.

RF SPDT Switch Model 2677

Switching Time*
ON time………………………………………..	500 ns max.
OFF time……………………………………….	500 ns max.
*Shapped current pulses must be provided by user

Power Handling Capability
Without Performance Degradation…..	1 W cw or peak
Survival Power……………………………….	1 W average, 75 W peak (1 µsec max. pulse width)
Power Supply Requirements
Port ON ……………………………………..+7.0V ±5%, 50 mA Port OFF……………………………………..-1.0V ±5%, 50 mA

OPTION (G09) ENVIRONMENTAL RATINGS

Operating Temperature Range ……….

-55°C to +110°C

Non-Operating Temperature Range...

-65°C to +125°C

Shock ………………………………………….

MIL-STD-202F, Method 213B, Cond. B
(75G, 6 msec)

Vibration ……………………………………..

MIL-STD-202F, Method 204D, Cond. B (.06″ double amplitude or 15G, whichever is less)

Altitude ……………………………………….

MIL-STD-202F, Method 105C, Cond. B (50,000 ft)

Temp. Cycling ……………………………….

MIL-STD-202F, Method 107D, Cond. A, 5 cycles

DIMENSIONS AND WEIGHT

Weight approx 35 gr (1.2 Oz)

Dimensions in mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005

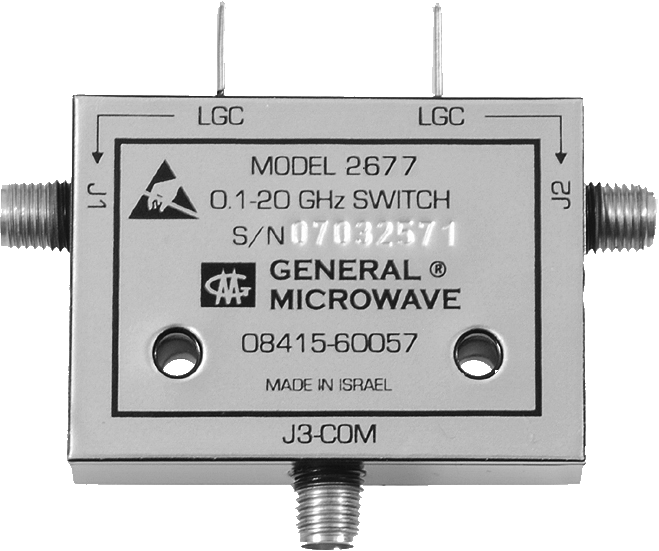

SPDT RF Switch Model 2677
