Kratos General Microwave provides various types of switched filter banks. These are customized products designed to meet specific customer requirements. The main features of this product line are:
- Fast Switching
- Low Loss
- Temperature Stability
The following filter technologies are being used:
- Cavity Combline
- Lumped Elements

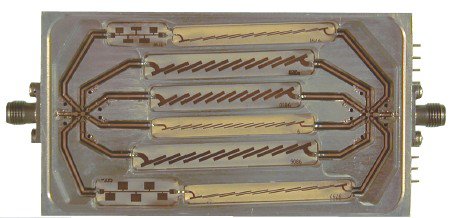

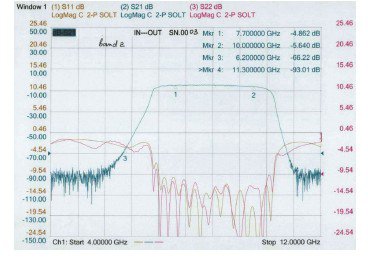

- Printed Filters
The following are samples of switched filter banks supplied by us

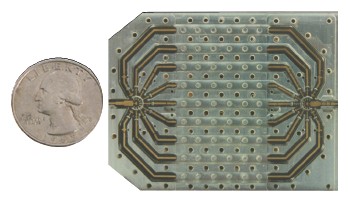

| SUB-Miniature SWITCHED FILTER BANK | |
|
FEATURES
|
 |

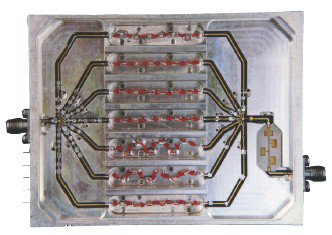

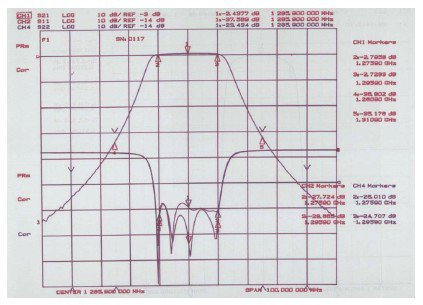

| Model SBF-0518-7-LEM VARIOUS TECHNOLOGIES IMPLEMENTED IN A SWITCHED FILTER BANK |
|
|
FEATURES
|
|
 |
 |
| CH |
Pass Band (GHz) |
Insertion Loss (dB) |
Rejection (GHz) | |||
| 9.0 | 30 dB | 45 dB | 55 dB |
60 dB |
||
| 1 | 0.472 to 0.808 | 9.0 | 14 to 20 | 1 to 14 | DC to 0.22 | |
| 2 | 0.728 to 1.320 | 9.0 | 14 to 20 | 1.5 to 14 | DC to 0.4 | |
| 3 | 1.240 to 2.088 | 9.0 | 16 to 20 | 2.4 to 16 | DC to 0.07 | |
| 4 | 10.456 to 18.088 | 9.0 | 21 to 30 | DC to 8.4 | ||
| 5 | 2.000 to 3.500 | 9.0 | 21 to 30 | DC to 1.4 | 4 to 10 | |
| 6 | 3.400 to 6.100 | 9.0 | DC to 2.9 | 6.8 to 20 | ||
| 7 | 5.950 to 10.550 | 9.0 | DC to 4.7 | 12 to 21 | ||
| Model SBF-620-4-MEC CAVITY TYPE SWITCHED FILTER BANK |
||
|
FEATURES
|
 |
|
| CH |
Pass Band (GHz) |
Insertion Loss (dB) max. |
Min. Rejection (GHz) |
||
| 50 dB | 65 dB | 50 dB | |||
| 1 | 5.95 to 9.05 |
7.5 | 2.2 to 5.2 |
13.4 to 16.4 |
11.2 |
| 2 | 8.95 to 12.85 |
7.5 | 1.6 to 5.4 | 16.0 to 19.8 |
14.4 |
| 3 | 12.75 to 16.05 |
7.5 | 1.6 to 4.8 |
6.4 to 9.6 |
11.2 |
| 4 | 15.95 to 20.05 |
7.5 | 1.6 to 3.6 |
8.8 to 12.8 |
14.4 |
