PERFORMANCE CHARACTERISTICS
|
MODEL |
SA-011-7- 05 | SA-011-8-025 |
| Frequency Range, min (MHz) | 100-1000 (1) |
100-1000 (1) |
| Attenuation Range, min (dB) | 63.5 (2) | 63.75 (2) |
| Insertion Loss, max (dB) | 6.0 |
6.0 |
| VSWR, max | 1.4:1 | 1.8:1 |
| Number of Bits | 7 | 8 |
| LSB, max (dB) | 0.5 | 0.25 |
| Monotonicity | Guaranteed | |
| Accuracy of Attenuation | ± 0.125 dB @ 0.5 dB ± 2% @ 1 to 63.5 dB |
± 0.125 dB @ 0.5 dB ± 2% @ 1 to 63.5 dB |
| Attenuation Flatness, max (dB)) | ± 1.5 |
± 1.5 |
| Power Handling, max (dBm) | 20 | 20 |
| Switching Time, max (nsec) | 20 | 500 |
| Switch Rate, max (MHz) | 0.5 |
0.5 |
| Control Logic | ‘1’ = I.Loss ‘0’ = Att. |
‘1’ = I.Loss ‘0’ = Att. |
| Control Input | TRUE TTL GATE | |
| Power Supply Requirements | +5V ± 2% @ 400 mA
|
+5V 2% @ 450 mA
|
| Environmental Conditions |  |
|
|
Package Type |

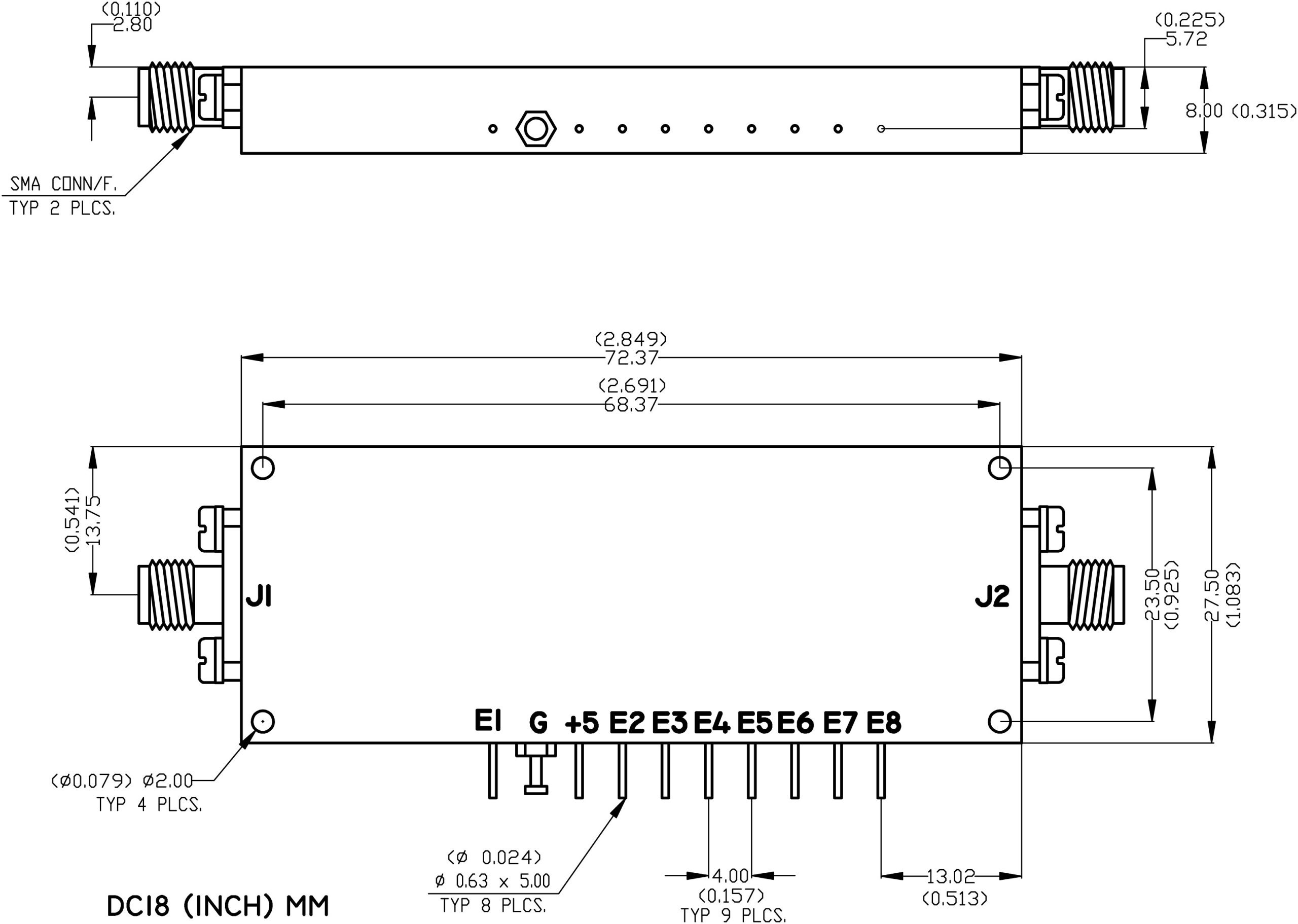

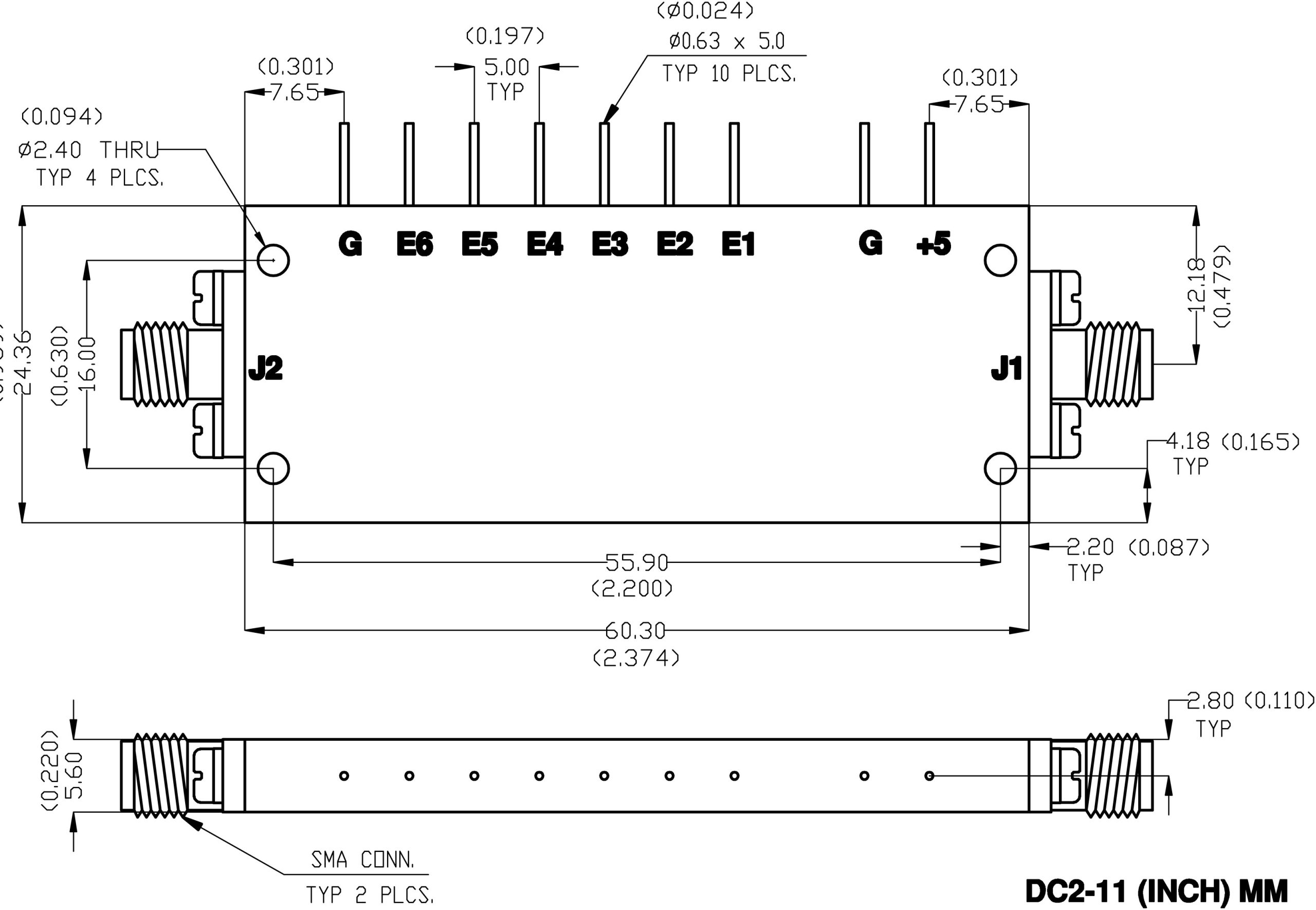

DC 2-11 | DC 18 |
|
NOTES
|
|
|||||||||
Package TYPE & DIMENSIONS
