Phase Shifter: Model 7929

Application Notes for Microwave Phase Shifters

The Model 7929 is a MMW PIN diode phase shifter covering the frequency range from 18 to 40 GHz providing a full 360° range of variable phase shift. Phase Shift Phase shifting is achieved utilizing the RF vector modulator approach shown in Figure 2. The 3dB hybrid coupler divides the RF signal into two quadrature components which are then biased in proportion to the sine and cosine of the desired phase shift. The signals are then combined in phase to yield desired output. Accuracy Improved phase accuracy and PM/AM performance are achieved by using double balanced biphase linear amplitude modulators. In the operating band, overall phase accuracy is better than 15°. Switching speed is better than 500 ns.

Model 7929 phase shifter block diagram — Fig 1-Model 7929, block diagram

18 to 40 GHz
360° range
Incremental Resolution 0.35°
High speed
Digitally programmable (10 Bits)
Guaranteed monotonicity
Hermetically Sealed

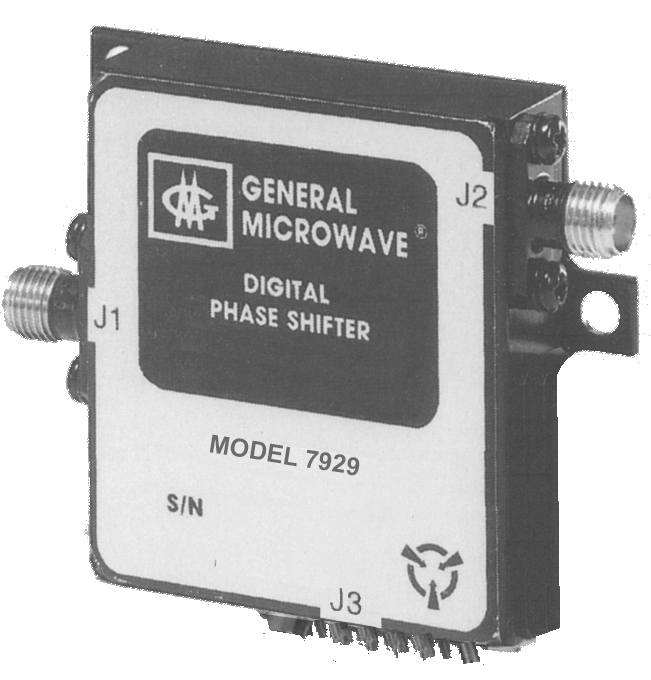

Millimeter Wave 10 Bit Digital 360 Phase Shifter Model 7929 — PHASE SHIFTER MODEL 7929

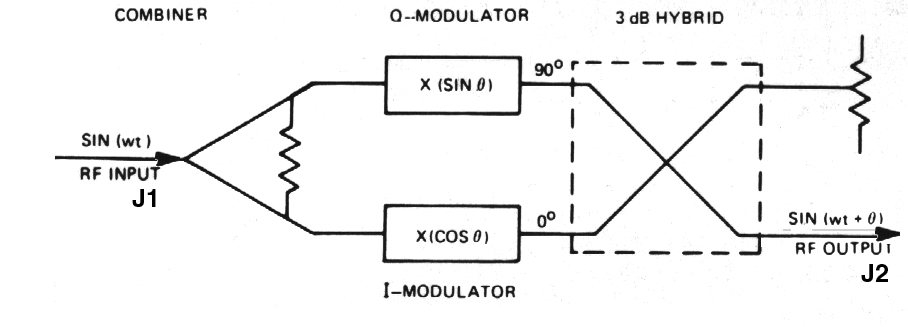

RF vector modulator, Model 7929 phase shifter — Fig 2-RF Vector Modulator

PHASE SHIFTER SPECIFICATIONS

FREQUENCY RANGE (GHz)

INSERTION

LOSS (Max.)

VSWR (Max.)

ACCURACY(Max.)

PM/AM
(Max.)

18.0-40.0

15.0 dB

INPUT: 2.5:1
J2

OUTPUT: 2.2:1

±15°

±2.0 dB

Operating Note: To initialized the unit after power up, at least one of the digital bits has to change its TTL level.

PERFORMANCE CHARACTERISTICS

Phase Shift

Range …………………………………………….

360° in 1,024 steps

Variation …………………………………………

0.1°/C°

Control Input …………………………..

10 bit TTL

Switching Speed ………………….

(50% TTL to within 10° of
Final Phase Value)

500 ns max

Input IP2 …………………………………

+60 dBm typ.

Input IP3 …………………………………

+35 dBm typ.

Power Handling Capability

Without Performance
Degradation …………………….

+20 dBm

Survival Power …………………………………..

+30 dBm

Power Supply Requirements

+5V ± 5%, 125 mA max
+12 to +15V, 10 mA max
-12 to -15, 95 mA max

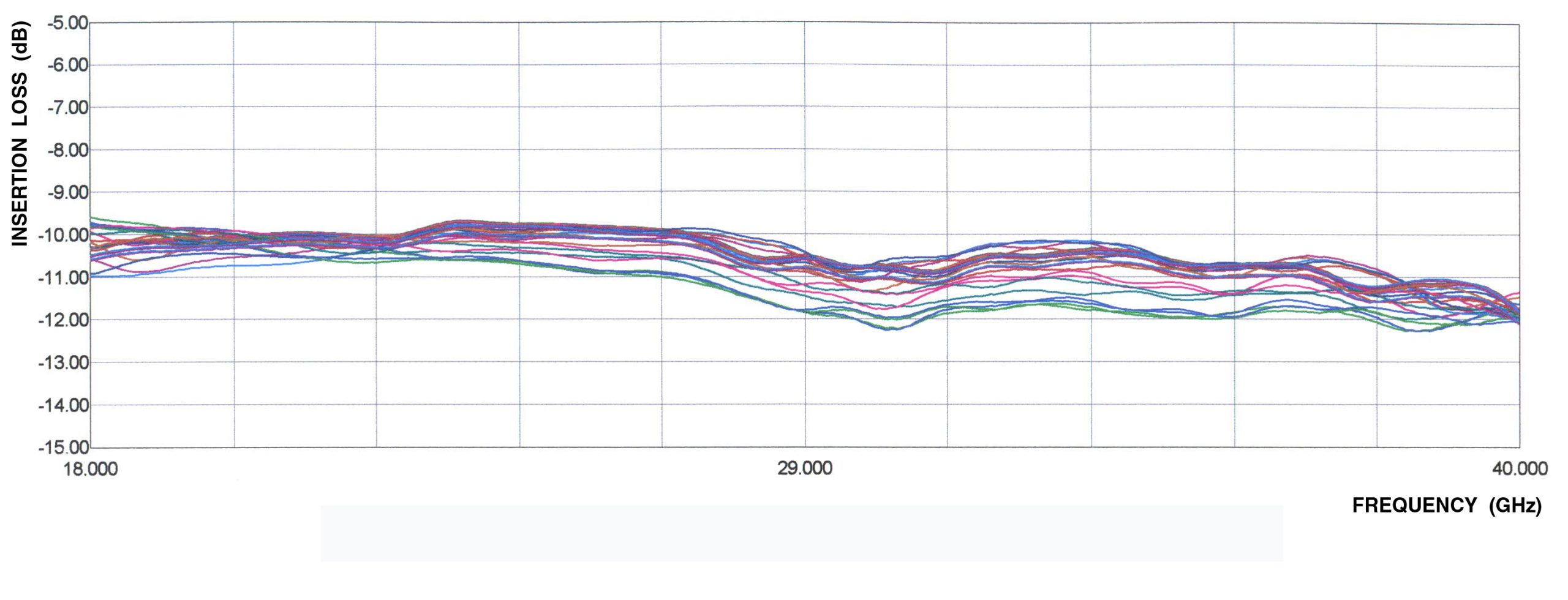

Model 7929 insertion loss vs frequency chart — Fig 3-Model 7929 Insertion Loss VS. Frequency (PM/AM)

NARROW BAND PHASE SHIFTERS

In addition to the standard wide band Phase Shifters, KRATOS General Microwave is offering Narrow Band
Phase Shifters. These units are available both as standard catalog units and as customized units meeting
specific customer’s requirements. The narrow band units have better performances and lower prices.

Frequency Range

Model Number

Phase Accuracy

PM/AM

Insertion Loss

18.0 to 21.4 GHz

7929-NB-1821

± 6^o (max.)

± 1.0 dB

13.0 dB (max.)

27.0 to 31.0 GHz

7929-NB-2731

± 6^o (max.)

± 1.0 dB

13.0 dB (max.)

33.0 to 36.0 GHz

7929-NB-3336

± 6^o (max.)

± 1.0 dB

13.0 dB (max.)

37.0 to 40.0 GHz

7929-NB-3740

± 10^o (max.)

± 1.0 dB

13.5 dB (max.)

ACCESSORY FURNISHED

Malting power/control connector

ENVIRONMENTAL RATINGS

Operating Temperature Range ……………………………….

-54° to + 95°

Non-Operating Temperature Range ……………………….

-65° to + 125° C

AVAILABLE OPTIONS

Option no

Description

Two K male rf connectors

One K male (J1) and one K female (J2) rf connector

High Rel screening per the following Table 1

G09

Guaranteed to meet Environmental Ratings

G12

RoHS Compliant

G16

RoHS and REACH Compliant

Table 1. Option 49 High Rel Screening – MIL – STD 883

TEST	METHOD	CONDITION
Internal Visual	2017	—
Temperature Cycle	1010	A
Mechanical Shock	2002	B
Burn-In	1015	—
Leak	1014	A1

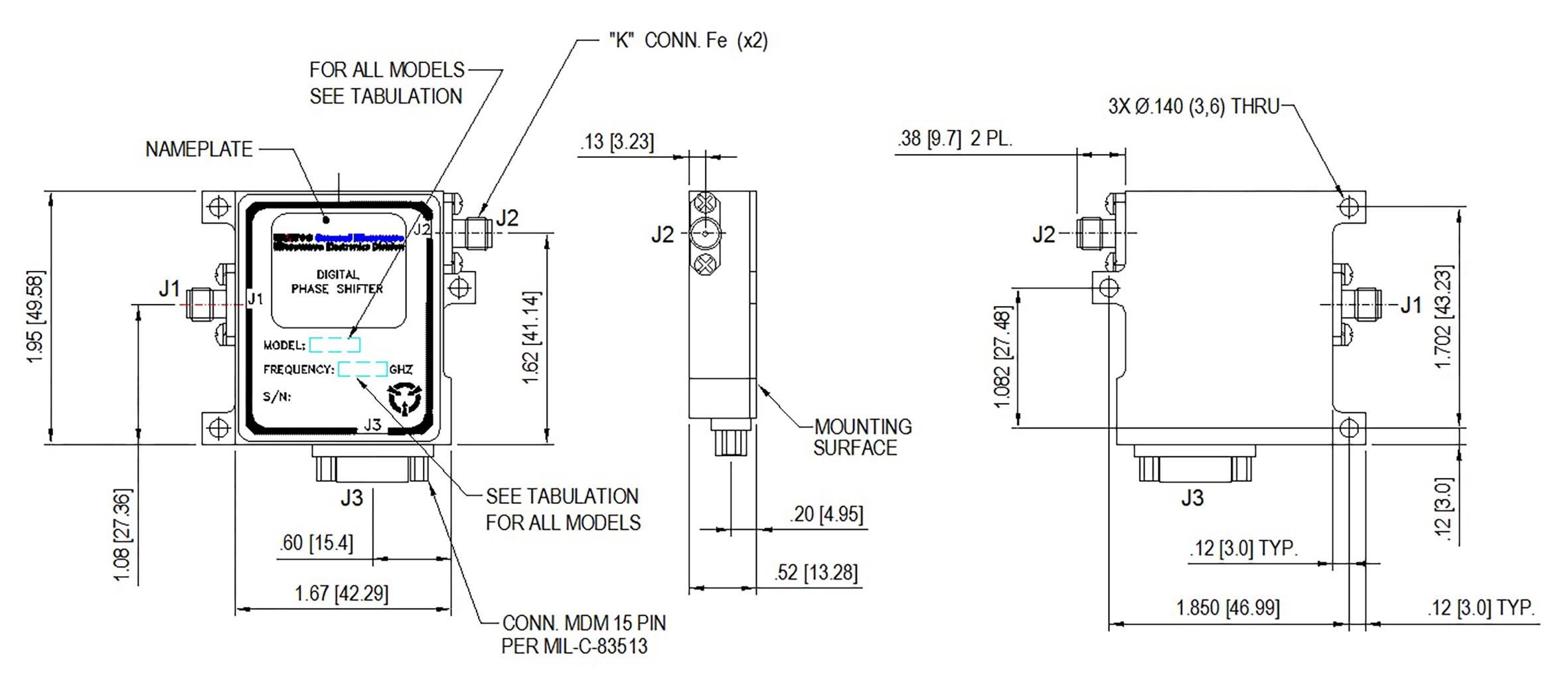

DIMENTION AND WIGHT

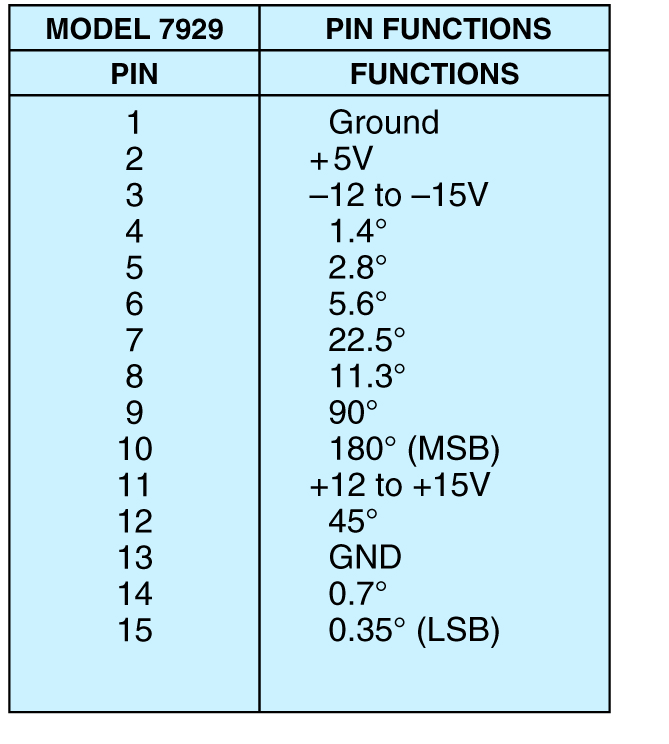

Model 7929 Millimeter Wave 10 Bit Digital 360 Phase Shifter

Model 7929 Millimeter Wave 10 Bit Digital 360 Phase Shifter

Operating Note: To initialized the unit after power up, at least one of the digital bits has to change its TTL level.
