The series FE Frequency Extender has been designed to extend, at a low cost, the frequency range of the high performance Fast Indirect Synthesizers enabling operation from 0.5 to 40 GHz.
The following product families may be used as an input source for the FE Frequency Extender: SW0120, SF6219, SM6220, D6218.
The SM6220 synthesizer is capable of wideband frequency modulation with a span of 1 GHz. The FE Frequency Extender is supporting this capability through millimeter wave. The result of combining the SM6220 with the FE is a wideband synthesizer capable of wideband frequency modulation with a span of 1 GHz up to 40 GHz.
For military applications, this product requires option G09 to comply with Military Standards. The specific environmental MIL STD requirements as well as the EMI/RFI specifications should be provided by the customer.
The following product families may be used as an input source for the FE Frequency Extender: SW0120, SF6219, SM6220, D6218.
The SM6220 synthesizer is capable of wideband frequency modulation with a span of 1 GHz. The FE Frequency Extender is supporting this capability through millimeter wave. The result of combining the SM6220 with the FE is a wideband synthesizer capable of wideband frequency modulation with a span of 1 GHz up to 40 GHz.
For military applications, this product requires option G09 to comply with Military Standards. The specific environmental MIL STD requirements as well as the EMI/RFI specifications should be provided by the customer.
- Input Frequency within 2 to 20 GHz
- Output Frequency 2 to 40 GHz
- Optional 0.5 to 40 GHz
- Optional 0.5 to 20 GHz
- Low Cost
- Airborne
- Compact Size

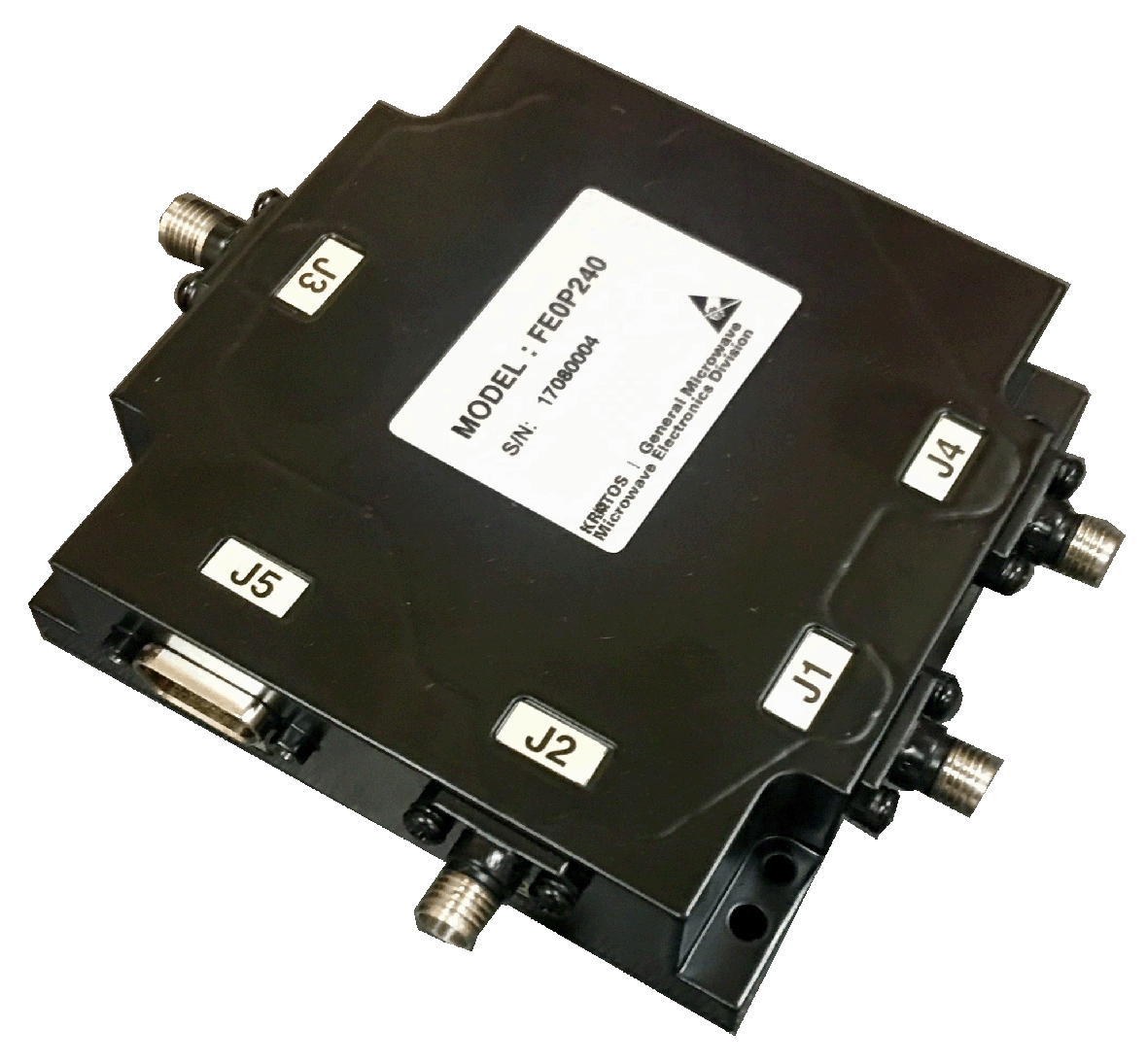

Model FE0240 Frequency Extender
| Parameter | SPECIFICATION |
||||
| Model |
FE0P540 | FE0240 | FE0P520 | FE0P240 | |
| 1 | INPUT FREQUENCY RANGE (GHz) |
2 to 20 |
2 to 20 |
2 to 20 | 2 to 20 |
| 2 | OUTPUT FREQUENCY RANGE (GHz) |
0.5 to 40 |
2 to 40 |
0.5 to 20 | 0.25 to 40 |
| 2.1 | J2 |
2 to 20 |
2 to 20 |
2 to 20 | 2 to 20 |
| 2.2 | J3 |
18 to 40 |
18 to 40 |
N A | 18 to 40 |
| 2.3 | J4 |
0.5 to 2 |
N/A |
0.5 to 2 | 0.25 to 2 |
| 3 | INPUT POWER (dBm) | +8 to +12 | +8 to +12 | +8 to +12 | +8 to +12 |
| 4 | OUTPUT POWER (dBm) | ||||
| 4.1 | 2.0 to 20 GHz @ J2 min. |
=(Input Power – 4dB) |
|||
| 4.2 | 18 to 40 GHz @ J3 typ. |
+10 to +15 | +10 to +15 | N A | |
| 4.3 | 0.5 to 2 GHz @ J4 typ. |
0 |
N/A | 0 | 0 |
| 5 | INPUT VSWR, max. | 2.0:1 | 2.0:1 | 2.0:1 | 2.0:1 |
| 6 | OUTPUT VSWR | ||||
| 6.1 | 0.5 to 2 GHz @ J4 max. | 2.0:1 | N/A | 2.0:1 | 2.0:1 |
| 6.2 | 2 to 20 GHz @ J2 max. | 2.0:1 | 2.0:1 | 2.0:1 | 2.0:1 |
| 6.3 | 18 to 40 GHz @ J3 max. |
2.5:1 | 2.5:1 | N A | 2.5:1 |
| 7 | 2nd HARMONICS & SPURIOUS (dBc) |
||||
| 7.1 | 2.0 to 20 GHz, min. |
-50 | -50 |
-50 | -50 |
| 7.2 | 18 to 40 GHz, min. |
-50 | -50 | N A | -50 |
| 8 | SWITCHING TIME, max (nSec) |
250 |
250 |
250 | 250 |
| 9 | POWER SUPPLY (A) |
||||
| 9.1 | 12 to 15 VDC, max. |
1.5 | 1.5 |
0.85 | 1.5 |
| 9.2 | -12 to -15 VDC, max. |
0.25 | 0.25 |
0.25 | 0.25 |
| 10 | FILTER OVERLAP, min. (GHz) |
1 | 1 |
N A | 1 |
| 11 | FILTER CONTROL, TTL, Logic 1, BITS | 7 | 7 |
N A | 7 |
| 12 | OPERATING TEMPERATURE, (°C) | -40 to +85 | |||
| 13 | AIRBORNE ENVIRONMENT (OPTION G09) |
Yes | Yes |
YES | YES |
| 14 | LASER SEALING | Yes | Yes |
YES | YES |
| 15 | RF CONNECTORS | ||||
| 15.1 | J1, J2, J4 | SMA FEMALE | |||
| 15.2 | J3 OUTPUT | K FEMALE | K FEMALE | N A | K FEMALE |
| 16 | CONTROL CONNECTOR | MDM 15 PINS | |||
| 17 | DIMENSIONS, (mm) | 76.2 x 76.2 x 20.32 | |||
| 17.1 | DIMENSIONS, (Inches) | 3.0 x 3.0 x 0.8 | |||
DIMENSIONS AND WEIGHT
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| NOTES | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TTL Logic Levels: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
“0” – -0.3 to +0.8V |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CONTROL COMMAND |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
• Switch control logic signal shall be 3 line binary coded TTL logic, as described in the logic table. • Shut-Down Mode – the unit is set to J4 and there is no current to the frequency divider. Weight approx. 200 gr. (7 Oz) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions are stated in inches (mm). Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.008
