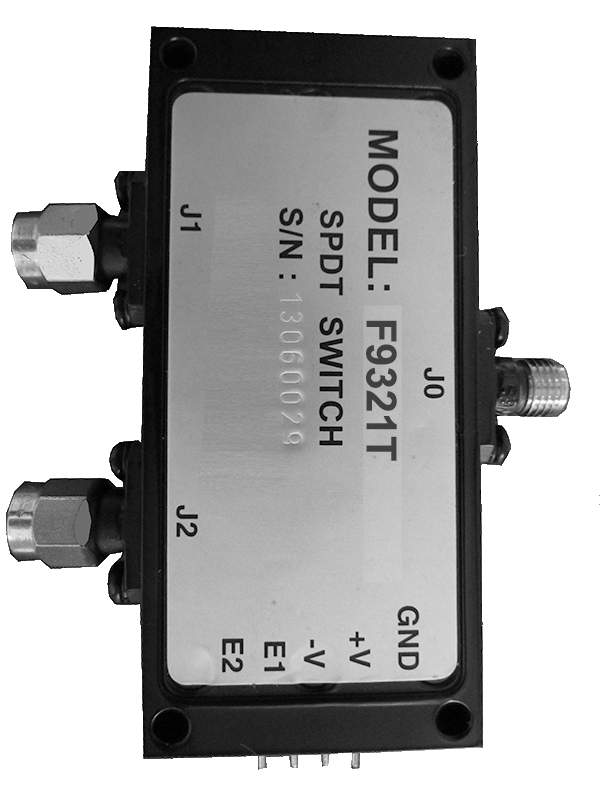

Model F9321T SPDT RF Switch

Model F9321T is a low cost high-performance terminated SPDT switch that operates over the full instantaneous bandwidth of 2 to 21 GHz with ON and OFF times of 100 ns. Design features include an
integrated circuit assembly of PIN diodes mounted in a microstrip transmission line.
The Model F9321T has all of the output ports on one side while maintaining Amplitude and Phase matching between all output ports.
The Model F9321T is equipped with an integrated driver that is powered by +5 and –12 volt supplies. The proper currents required to switch the ports ON or OFF are provided by the driver, which is controlled by external logic signals.

PERFORMANCE SPECIFICATIONS

CHARACTERISTIC

SPECIFICATION

FREQUENCY RANGE (GHz)

2 to 21

MIN. ISOLATION (dB)

MAX. INSERTION LOSS (dB)

4.0

MAX. VSWR (ON/OFF)

2.5

Frequency range: 2 to 21 GHz
Isolation: 45 dB
In-line outputs
Phase and amplitude matched
Non-reflective

PHASE and AMPLITUDE MATCHING
Amplitude Matching …………………………………. 0.1 dB typical
Phase Matching ………………………………………….12^otypical

SWITCHING TIME
ON/OFF Time ………………………………………………500 ns max.

POWER HANDLING CAPABILITY
Without Performance Degradation
OFF Port ……………………. 100 mW cw or peak
ON Port ……………………… 1W cw or peak
Survival Power
OFF Port……………………… 1W average, 10W peak (1 sec max. pulse width)
ON Port ………………………. 1W average, 75W peak (1 sec max. pulse width)

POWER SUPPLY REQUIREMENTS
+5V ………………………………………………….. ±2%, 80 mA max.
-12V to -15V ……………………………………… 50 mA max.

CONTROL CHARACTERISTICS
Control Input Impedance …………………………… TTL, advanced Schottky, one unit load. (A unit load is 0.6 mA sink current and 20 μA source current.)
Control Logic …………………………………………… Logic “0” (-0.3 to +0.8V) for port ON and logic “1” (+2.0 to +5.0V) for port OFF.	.

OPTION (G09) ENVIRONMENTAL RATING
Operating Temperature Range ……………………….. –54°C to +110°C
Non-Operating Temperature Range …………………..–65°C to +125°C
Humidity ………………………………………………………MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)
Vibration ……………………………………………………….MIL-STD-202F, Method 204D, Cond. B (.06″ double amplitude or 15G, whichever is less)
Altitude ……………………………………………………….. MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)
Temp. Cycling ………………………………………………..MIL-STD-202F, Method 107D, Cond. A, 5 cycles

AVAILABLE OPTIONS
OPTION NO. DESCRIPTION
G09 Guaranteed to meet Environmental Ratings
G12 RoHS & Reach Compliant
G18 REACH Compliant

DIMENSIONS AND WEIGHTS

Weight approx 55 gr (1.9 oz)

Dimensions in mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005

2 to 21 GHz Model F9321T SPDT Switch

PERFORMANCE SPECIFICATIONS

DIMENSIONS AND WEIGHTS
