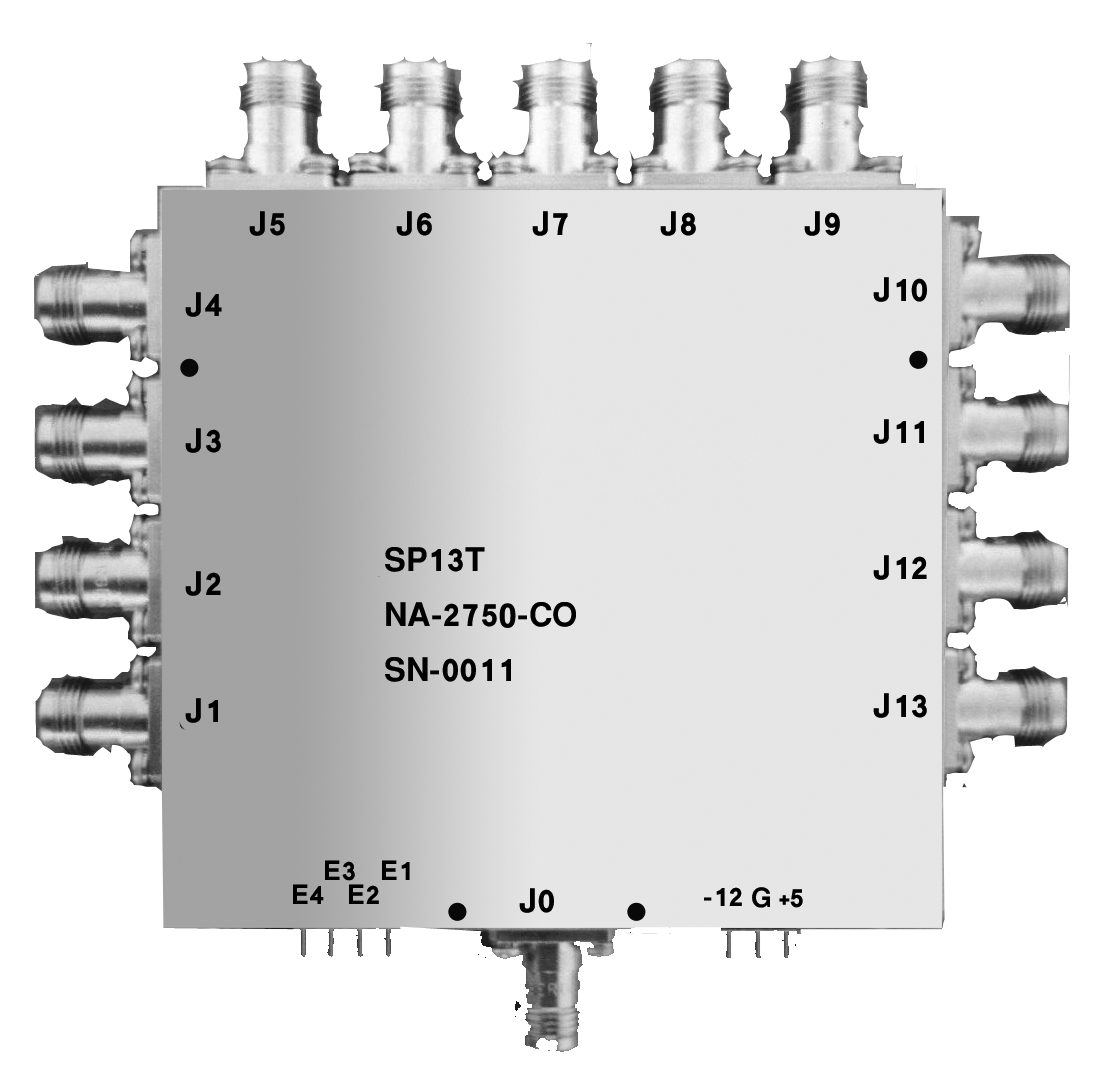

Model NA-2750-CO Low Profile Absorptive SP13T Switch

Application Notes for RF Switches

Model NA-2750-CO SP13T switch is part of our product line of Low Profile, slim hermetically sealed switches.

The Model NA-2750 series is equipped with an integrated driver that is powered by +5 and -12 volt supplies. The proper currents required to switch the ports ON or OFF are provided by the driver, which is controlled by external logic signals.

PERFORMANCE SPECIFICATIONS

CHARACTERISTIC

FREQUENCY RANGE (GHz)

5.3 to 7.5

Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR one port ON
Max. VSWR OFF

50
4.5
1.8 :1
1.8 :1

Frequency range: 5.3 to 7.5 GHz
Non-reflective
Internal Decoder
Hermetically Sealed
Low Profile
Decoder

Special Order Product Consult Factory Before Ordering
Model NA-2750-CO Low Profile Absorptive SP13T Switch

Switching Time
ON time…………………………. 100 nsec max.
OFF time………………………… 100 nsec max.
Switching Rate………………………… 0.1 MHz max

Power Handling Capability
Without Performance Degradation…….….. 200 mW cw or peak
Survival Power…………………………………….. 25°C 1W cw

Power Supply Requirements
+5V ±2%, 600 mA max –12V ±2%, 140 mA max

Control Characteristics………………………….. 4 Bit decoder

ENVIRONMENTAL RATINGS
Operating Temperature Range……………………. –20°C to +70°C
Non Operating Temperature Range…………….. –55°C to +125°C
Humidity…………………………………………………… MIL-STD-202F, Method 103B, Cond. (96 hrs. at 95%)
Shock……………………………………………………….. MIL-STD-202F, Method 213B, Cond. C (100G/ 6/msec)
Vibration…………………………………………………… MIL-STD-202F, Method 204D, Cond. G (30g PEAK)
Altitude…………………………………………………….. MIL-STD-202F, Method 105C, Cond. C (70,000 ft.)
Temp. Shock……………………………………………… MIL-STD-202F, Method 107D, Cond. A, (5 cycles) -55°C to +125°C
Seal ………………………………………………………… MIL-STD 202F, Method 112C, Cond. C 5×10-7
Salt Spray…………………………………………………. MIL-STD 202F, Method 101D+EST., Cond. B

OPTIONS

Other Frequency Bands
Reflective
Different Outline
Video Leakage Requirements

DIMENSIONS

Dimensions in mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005

The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
