Broadband SP8T Switches

Application Notes for RF Switches

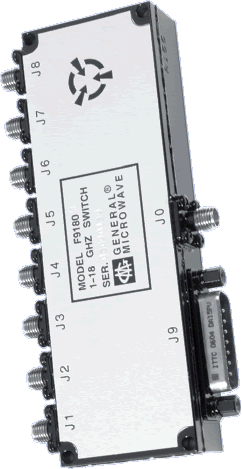

The Models F9180 and F9180W SP8T switches operate over a frequency range of 1 to 18 GHz. They are low-cost state-of-the-art, high isolation, low Insertion loss units. For the Model F9180, the reflective design, Insertion loss varies from 1.5 dB at 1 GHz to 4.4 dB at 18 GHz. The corresponding values for the Model F9180W, the non-reflective design, are 2.0 dB and 4.8 dB, respectively. Isolation varies from 65 dB at 1 GHz to 60 dB at 18 GHz, for Model F9180 and 55 dB for Model F9180W. The VSWR limit for both designs ranges from 1.7 to 2.0, depending on frequency. These units switch in under 250 nanoseconds. They operate over temperature ranges as wide as -54°C to +110°C and withstand RF power levels as high as 75 watts peak, 1 watt average.

Each model weighs 8.5 ounces and measures 4.65 x 1.5 x 0.75″. They are powered by +5V DC and -12 to -15V DC (standard) or by ±5V DC (Option 11). Individual port TTL logic control and power supply connections are made by means of a DA15P connector.

Frequency range: 1 to 18 GHz
Reflective and non-reflective models
High isolation, low Insertion loss and VSWR
Switching time: 250 ns

Low Cost Broadband SP8T Switch Model F9180

FREQUENCY (GHz)

MODEL NO.⁽¹⁾

CHARACTERISTIC

1-2

2-4

4-8

8-12.4

12.4-18

F9180*

Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON)

65
1.5
1.7

65
2.0
1.7

65
2.4
2.0

65
3.2
2.0

60
4.4
2.0

F9180W

Min. Isolation (dB)
Max. Insertion Loss (dB)
Max. VSWR (ON or OFF)

65
2.0
1.7

65
2.3
1.7

65
3.2
2.0

60
3.5
2.0

55
4.8
2.0

*Special-order product. Consult factory before ordering.

(1) Models prefixed with “W” are non-reflective except a high VSWR will be presented at the common port if all other ports are OFF.

PERFORMANCE CHARACTERISTICS

Power Handling Capability
Without Performance Degradation
F9180: ………………………………………..	0.5W cw or peak
F9180W:
Input to any “OFF” port: ………………	100 mW cw or peak
Input to any “ON” port: ………………..	0.5W cw or peak
Input to common port: ……………….	0.5W cw or peak
Survival Power
F9180: ………………………………………..	1W average, 75W peak (1 μsec max. pulse width)
F9180W:
Input to any “OFF” port: ………………	1W average, 10W peak (1 μsec max. pulse width)
Input to any “ON” port: ……………….	1W average, 75W peak (1 μsec max. pulse width)
Input to common port: ……………….	1W average, 75W peak (1 μsec max. pulse width)

Switching Time
ON time…………………………………………..	250 ns max.
OFF time………………………………………….	250 ns max.
Power Supply Requirements…………..	+5V ±5%, 100 mA -12V to -15V, 50 mA

Control Characteristics
Control LOGIC…………………………………..	Logic “0” (-0.3 to +0.8V) for port ON Logic “1” (+2.0 to +5.0V) for port OFF
Control INPUT IMPEDANCE………………..	0.5 mA sink current, max.

OPTION (G09) ENVIRONMENTAL RATINGS

Temperature Range

Operating………………………………………….

-54°C to +110°C

Non-Operating…………………………………..

-65°C to +125°C

Humidity……………………………………………..

MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)

Shock………………………………………………….

MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)

Vibration……………………………………………..

MIL-STD-202F, Method 204D, Cond. B (.06″ double amplitude or 15G, whichever is less)

Altitude……………………………………………….

MIL-STD-202F, Method 105C, Cond. B (50,000 ft.)

Temp. Cycling……………………………………….

MIL-STD-202F, Method 107D, Cond. A, 5 cycles

ACCESSORIES FURNISHED

Mating power/logic connector

AVAILABLE OPTIONS

Option No. Description

7 SMA male RF connectors

9 Inverse control logic; logic “0” for port OFF and logic “1” for port ON

11 ±5V operation

41⁽¹⁾Internal video filter, common port only

42⁽¹⁾Internal video filter, output ports only

43⁽¹⁾Internal video filter, all ports

G09 Guaranteed to meet Environmental Ratings

G12 RoHS Compliant

G18 REACH Compliant

NOTE

(1) *See Video Filter Options on Switches

DIMENSIONS AND WEIGHT

Weight 8.5 oz. (240 gr.) approx.

Dimensions in mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005
