MODEL 2600

The Model 2600 is a low cost high-performance terminated SP4T switch that operates over the full instantaneous bandwidth of 1 to 18 GHz with ON and OFF times of 500 ns. Design features include an integrated circuit assembly of PIN diodes mounted in a microstrip transmission line.

The Model 2600 is equipped with an integrated driver that is powered by +5 and -12 volt supplies. The proper currents required to switch the ports ON or OFF are provided by the driver, which is controlled by external logic signals.

PERFORMANCE CHARACTERISTICS

CHARACTERISTIC	Model 2600
Frequency Range (GHz)	1-18
Min. Isolation (dB)	50
Max. Insertion Loss (dB)	4.4
Max. VSWR (ON)	2.0
Max. VSWR (OFF)	2.3

Frequency range: 1 to 18 GHz
Isolation: up to 50 dB
All in-line outputs
Phase and amplitude matched
Non-reflective

RF SP4T Switch Model 2600

Switching Time
ON time…………………………………………..	500 ns max.
OFF time…………………………………………	500 ns max.
Power Handling Capability
Without Performance Degradation ……	To OFF port 100 mW cw or peak. To ON port 500 mW
Survival Power………………………………..	To OFF port 1W average, 10W peak, and 75W peak to ON port (1 µsec max. pulse width)
Power Supply Requirements……………….	+5V ±5%, 190 mA -12V ±5%, 60 mA

Control Characteristics
Control Input Impedance ………………….	Schottky TTL, two unit loads. (A unit load is 2 mA sink current and 50 µA source current.)
Control Logic...………………………………..	Logic “0” (-0.3 to +0.8V) for port ON. Logic “1” (+2.0 to +5.0V) for port OFF.

OPTION (G09) ENVIRONMENTAL RATINGS

Operating Temperature Range ……….

-55°C to +110°C

Non-Operating Temperature Range ..

-65°C to +125°C

Humidity ………………………………………

MIL-STD-202F, Method 103B, Cond. B (96 hrs. at 95%)

Shock ………………………………………….

MIL-STD-202F, Method 213B, Cond. B (75G, 6 msec)

Vibration ……………………………………..

MIL-STD-202F, Method 204D, Cond. B (.06″ double amplitude or 15G, whichever is less)

Altitude ……………………………………….

MIL-STD-202F, Method 105C, Cond. B (50,000 ft)

Temp. Cycling ………………………………

MIL-STD-202F, Method 107D, Cond. A, 5 cycles

ACCESSORY FURNISHED

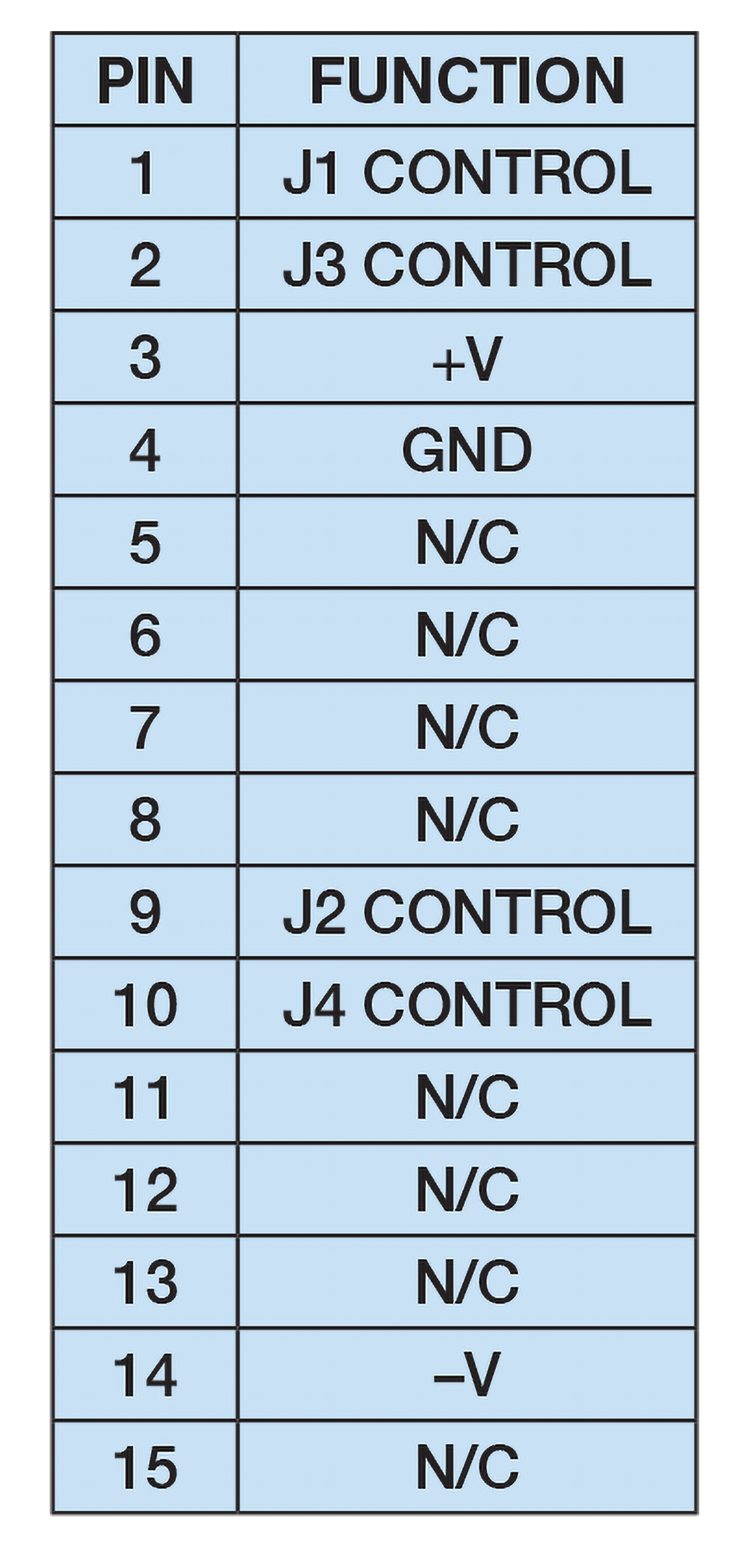

Mating power/logic connector

AVAILABLE OPTIONS

Option No. Description

G09 Guaranteed to meet Environmental Ratings

G12 RoHS Compliant

G18 REACH Compliant

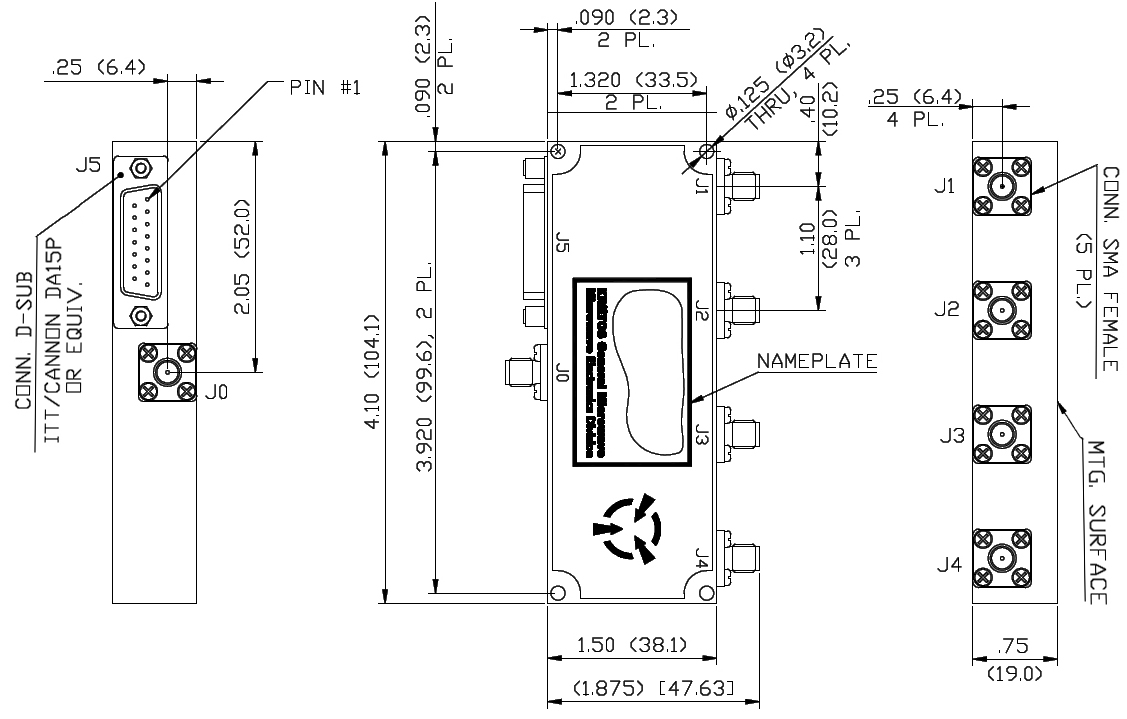

DIMENSIONS AND WEIGHT

Weight approx. 140gr. (4.9 Oz)

Dimensions in mm (Inches) Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.005

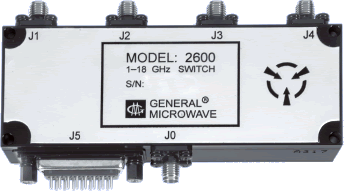

SP4T RF Switch Model 2600

SP4T RF Switch Model 2600
