Kratos General Microwave is offering the ANP-M-2640-35 Millimeter Wave broad band amplifier as a General Purpose amplifier for use in laboratories test setups. The maximum output power of this amplifier is 27 dBm.
MAIN BENEFITS
- Broad Frequency
- High Gain
- Flat Gain Response
- Repetitive Unit-to-Unit Gain Curve (option)
MAIN SPECIFICATIONS
| PARAMETER | UNITS | SPECIFICATION | |
| 1 | Frequency Range | GHz | 26.5 to 40 |
| 2 | Max. Output Power | dBm | 27 |
| 3 | P1dB (Typ.) | dBm | 26.0 |
| 4 | Small Signal Gain (Typ) | dBm | 36 to 41 |
| 5 | Gain Flatness (Typ) | dB | ±2 |
| 6 | Power Supply Requirement | ||
| 6.1 | Positive Supply | V | 6±10% (@4A) |
| 6.2 | Negative Supply | V | -7 to -5 (@0.1A) |
| 7 | Environment Conditions | Lab. | |
| 8 | Dimensions | ||
| 8.1 | Inch | 4.2 x 2.8 x 1 | |
| 8.2 | mm | 10.67 x 7.11 x 2.54 | |

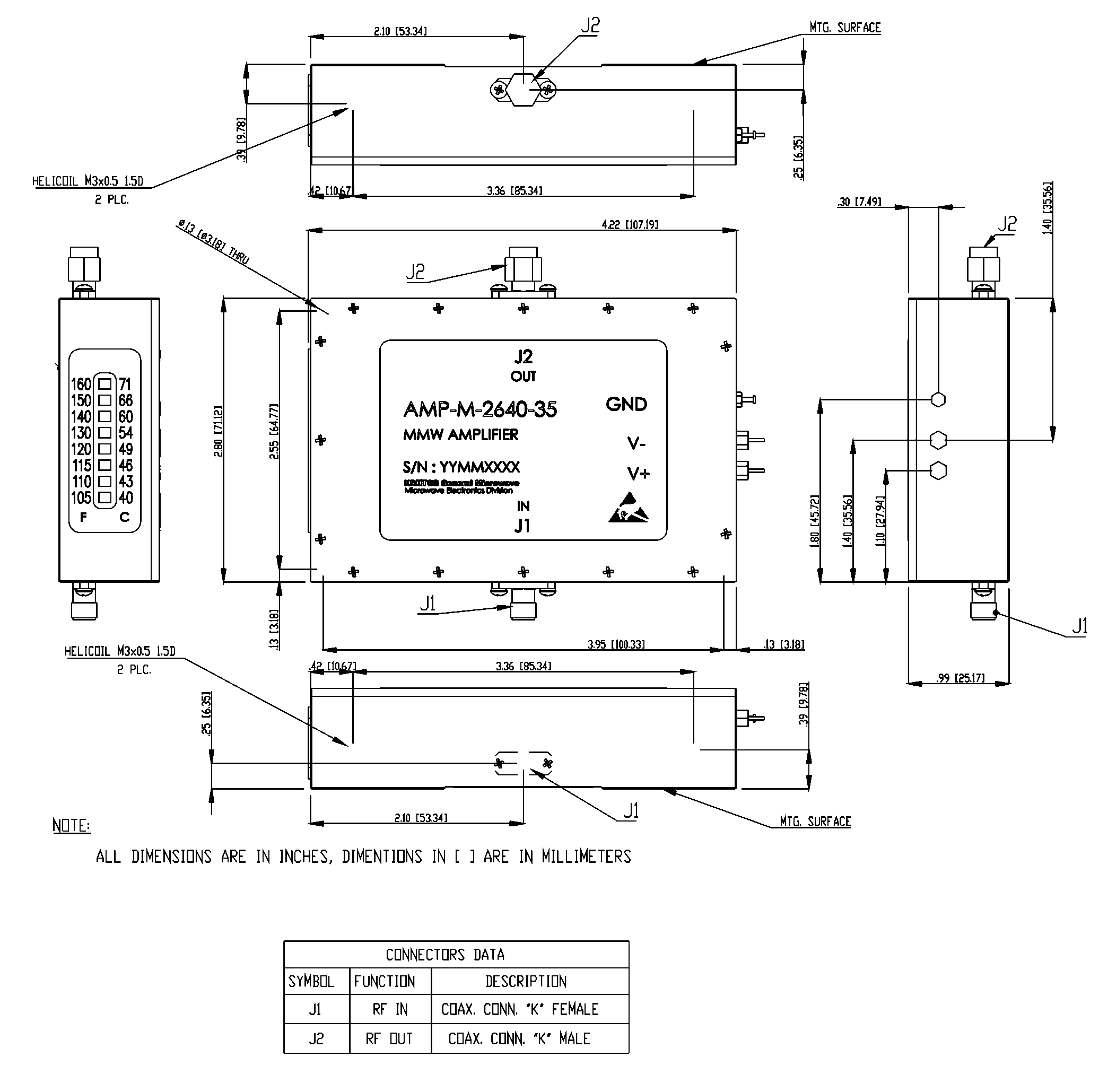

OUTLINE DRAWING
Tolerances, unless otherwise indicated: .XX ±.02; .XXX ±.008
