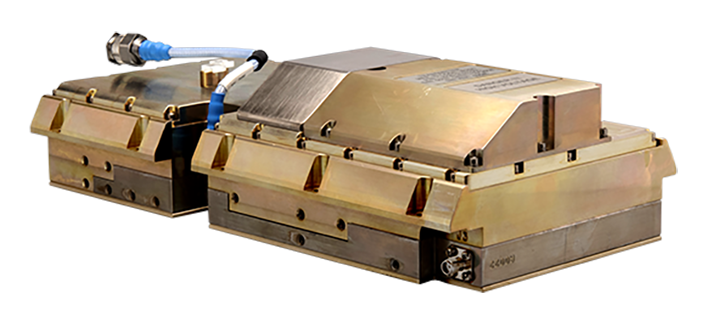

SOLID STATE POWER AMPLIFIER - MICROWAVE SSPA - GENERAL

KRATOS General Microwave offers a broad range of High Power Amplifiers for both Military and Commercial applications extending over the L-Band to Ku Band Frequency Range. Our SSPA's are based on legacy LD-MOS, GaAs and WBG GaN technology. Most of our PA products are for custom high performance applications.

TYPICAL APPLICATIONS

1. RADAR Systems
2. ECM and COMJAM
3. Data-Links for Air Born Applications
4. Test Systems
5. Special applications

MAIN FEATURES

1. L-Band up to Ku-bands.
2. Power levels up to 1 Kw Pulsed.
3. Operating in Class A and AB.
4. Utilizing Solid state technology such as LDMOS, GaAs, GaN on Sic and GaN MMICs.
5. Supports wide range of modulations such as LFM, and various digital modulations.
6. Remote Control options of RS 232, RS422 or ETHERNET.

PA PROTECTION and MONITORING

Special measures are implemented to Protect the Power Amplifiers from the following conditions and to monitor them (at the system level):

1. Over Temperature Alarm and Protection.
2. Open/Short Load Alarm and Protection.
3. Forward Power Monitor.
4. Reflected Power Monitor.
