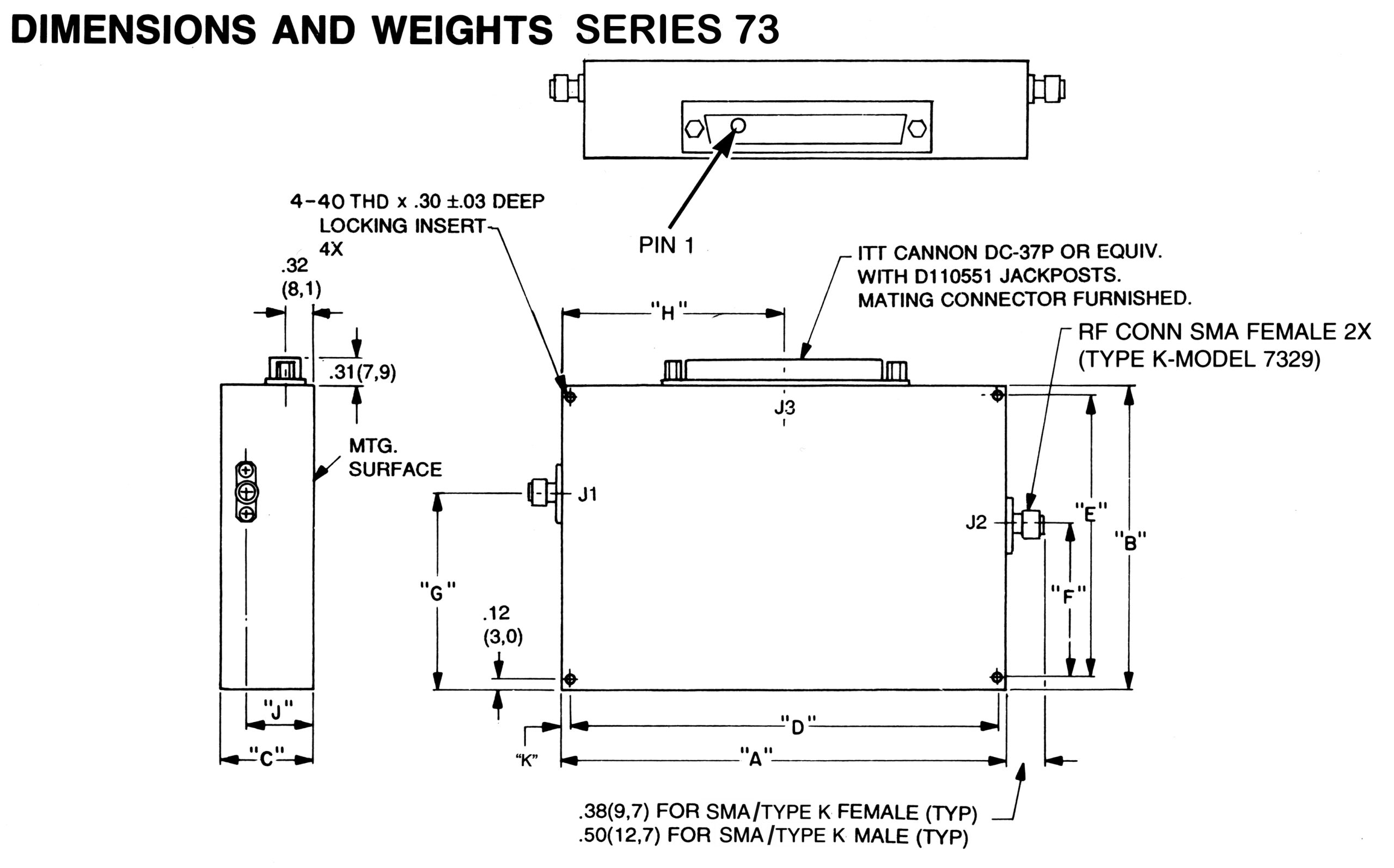

Series 73 12 Bit Digital and Series 74 Analog High Dynamic IQ Vector Modulators

THEORY OF OPERATION

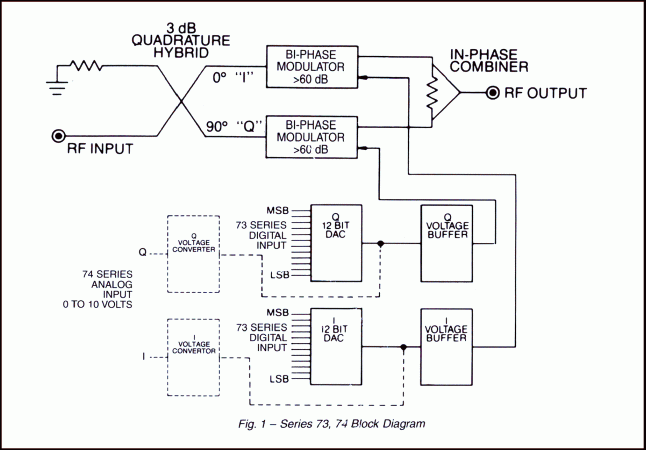

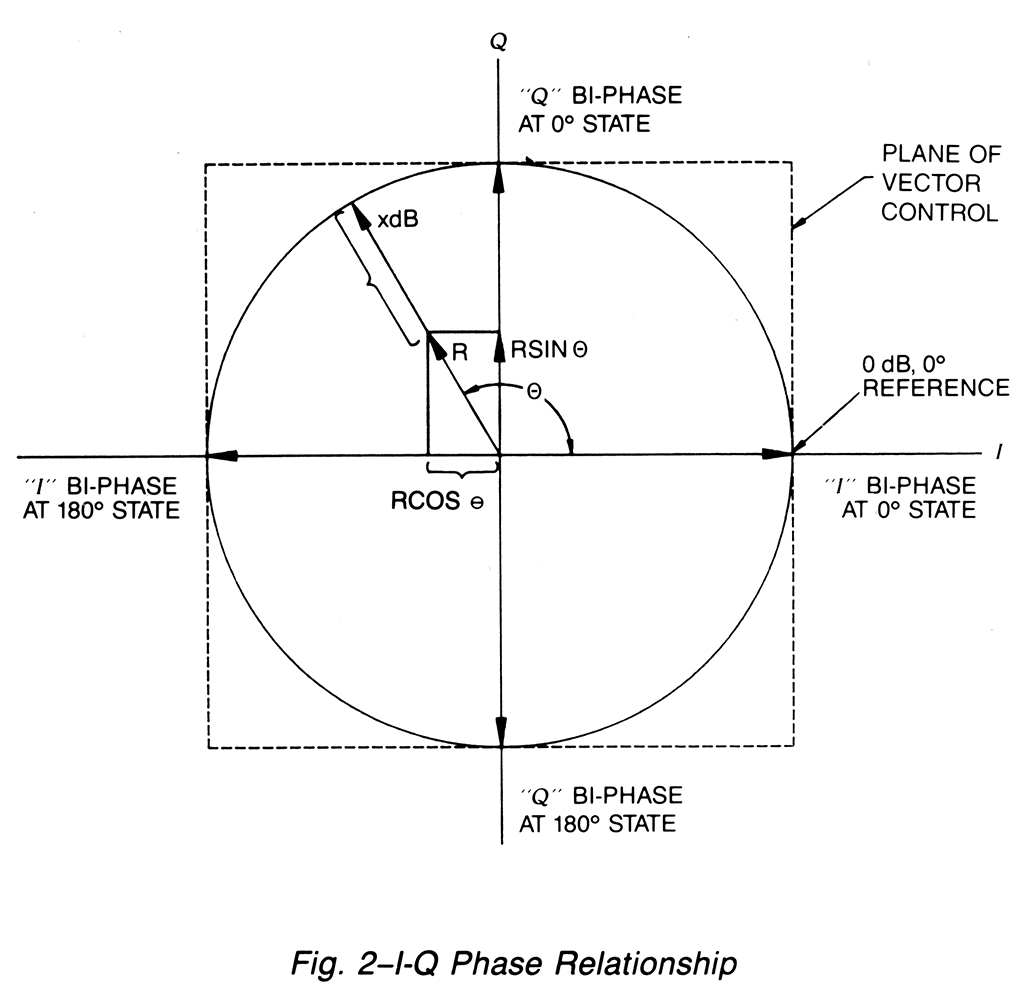

The block diagram of the I-Q Vector Modulator is shown in Figure 1. An RF signal incident on a 3 dB quadrature hybrid is divided into two equal outputs, with a 90° phase difference between them. The in-phase, or 0°, channel is designated the I channel and the Quadrature, or 90°, channel is designated the Q channel. Each signal passes through a biphase modulator which sets the 0° or 180° state and the attenuation level for both the I and Q paths. The outputs of the I and Q path are combined to yield the resultant vector which may fall anywhere within the bounded area shown in Figure 2. Any signal applied to the I-Q Vector Modulator can be shifted in phase and adjusted in amplitude by applying the following relationships:

1. Let the desired attenuation level = X dB and the desired phase shift = θ° (with respect to 0 dB and 0° reference states).
2. The normalized output voltage magnitude is given by: ? V ? = 10?(x/20).
3. The values of the I and Q attenuator control inputs are then expressed as:

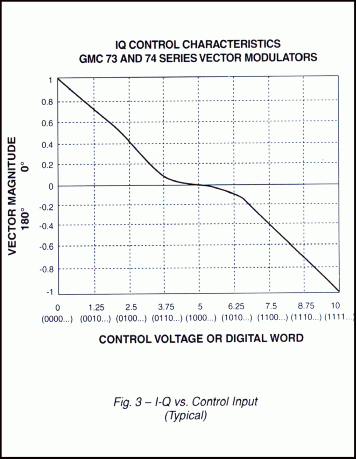

Figure 3 shows the nominal value of I and Q vs. either digital word (Series 73) or analog voltage (Series 74). Thus, to achieve an attenuation level of 3 dB with a phase offset of 112.5° (with respect to 0 dB and 0° reference states) the values of I and Q can be calculated as follows:

From Figure 3, the control inputs to yield the desired amplitude and phase are approximately:

While these values for I and Q will yield an output signal whose amplitude and phase are close to the nominal values over the entire operating frequency range of the vector modulator, the use of an iterative measurement procedure will determine the I and Q inputs which exactly define the desired parameter at any selected frequency.
