Power Amplifiers for Communication

CUSTOM AMPLIFIERS

Description

The following are typical examples of SSPAs supplied to our customers.

POWER AMPLIFIERS FOR COMMUNICATION

FEATURES

Radio Telephone Applications
Band-Width – One Octave
Class AB (Pulse and Amplitude Linearity)

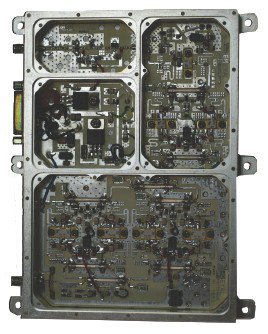

Radio Telephone Power Amplifier for Communication

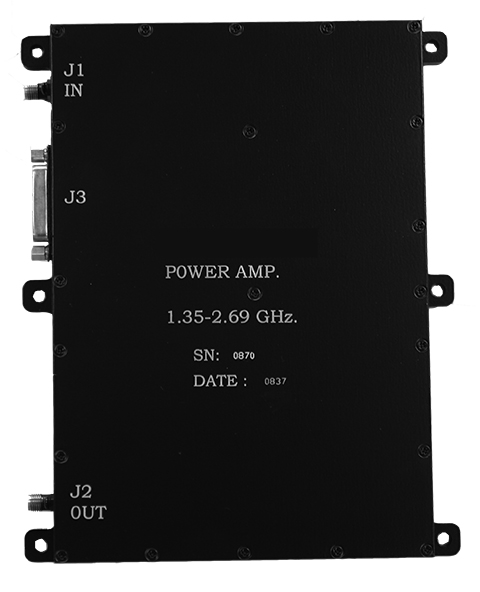

High Frequency Power Amplifier for Communication

FEATURES

Frequency Range: 1350-2700 MHz
Output power at P1dB: 45dBm
Gain: 44 dB
DC power Consumption: 110W

FEATURES

Frequency Range: 450-530 MHz
Output power at P1dB: 48.5dBm
Gain: 40 dB
DC power Consumption: 80W

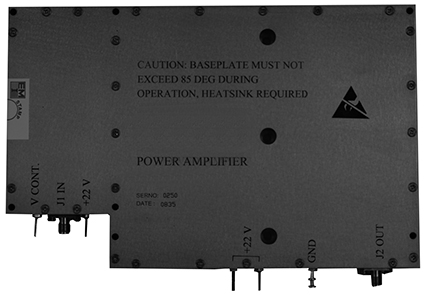

Kratos Power Amplifier for Communication

POWER AMPLIFIER FOR COMJAM

FEATURES

Up to 1 kW
VHF, UHF, L and Cellular frequency bands

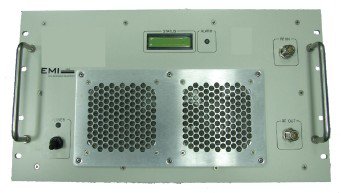

Power Amplifier for COMJAM

POWER AMPLIFIER FOR UAV DATA-LINK

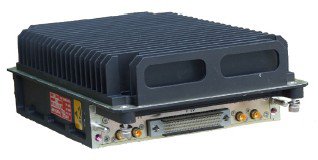

Power Amplifier for UAV Data-Link

FEATURES

VHF, UHF, L and S frequency bands
Option for Integrated Power Supply (MIL-704 and 461)
Designed For Frequency Hopping
Digital Modulation Input
ALC Power Control
High Efficiency

Inside View Power Amplifier for UAV Data-Link

The information contained in this data sheet is basic marketing information and does not contain any export controlled information.
