Attenuators

ATTENUATORSKratos General Microwave wideband millimeter-wave attenuators are available in various configurations. Model 1959 is current-controlled, while the Model D1959, which incorporates a hybrid driver, is voltage-controlled with a linearized transfer function of 10 dB per volt. The digitally-controlled Model 3499 provides 0.03 dB resolution (11 bits) and switching speed of less than 500 ns. Each of the these models operates over the full frequency range from 18-40 GHz with a dynamic attenuation range of 50 dB.

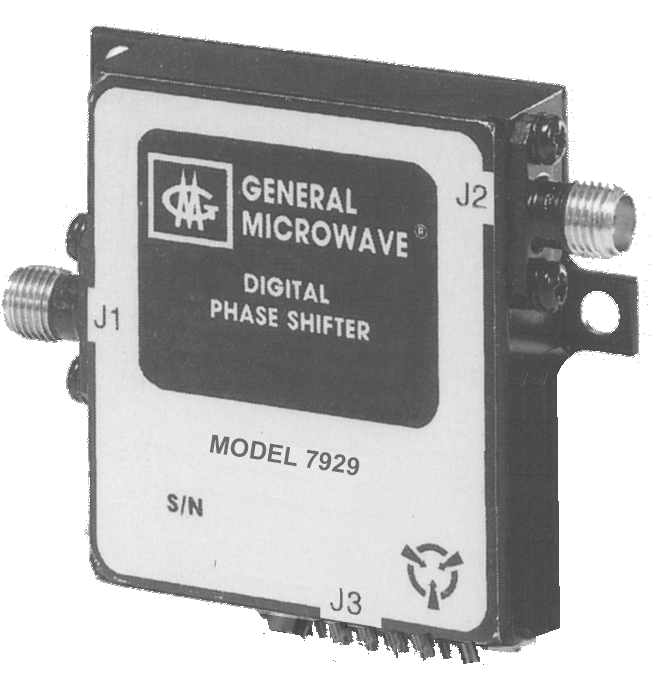

PHASE SHIFTERSKratos General Microwave is offering Milimeter Wave Phase Shifteres within the frequency band of 18 to 40 GHz.

QUADRATURE COUPLERThe Model 7050 3-dB Quadrature Coupler is a 4-port single-section Hopfer coupler which operates over the frequency range from 18-40 GHz. It features low insertion loss, high isolation, and excellent amplitude and phase balance.

CUSTOM PRODUCTSKratos General Microwave is offering Custom millimeter wave component products, they are produced per customers specifications.
